UI

UI框架

配置关于UI的ini文件

DefaultGame.ini

[/Script/LyraGame.LyraUIManagerSubsystem]
DefaultUIPolicyClass=/Game/UI/B_LyraUIPolicy.B_LyraUIPolicy_C

[/Script/LyraGame.LyraUIMessaging]
ConfirmationDialogClass=/Game/UI/Foundation/Dialogs/W_ConfirmationDefault.W_ConfirmationDefault_C
ErrorDialogClass=/Game/UI/Foundation/Dialogs/W_ConfirmationError.W_ConfirmationError_C

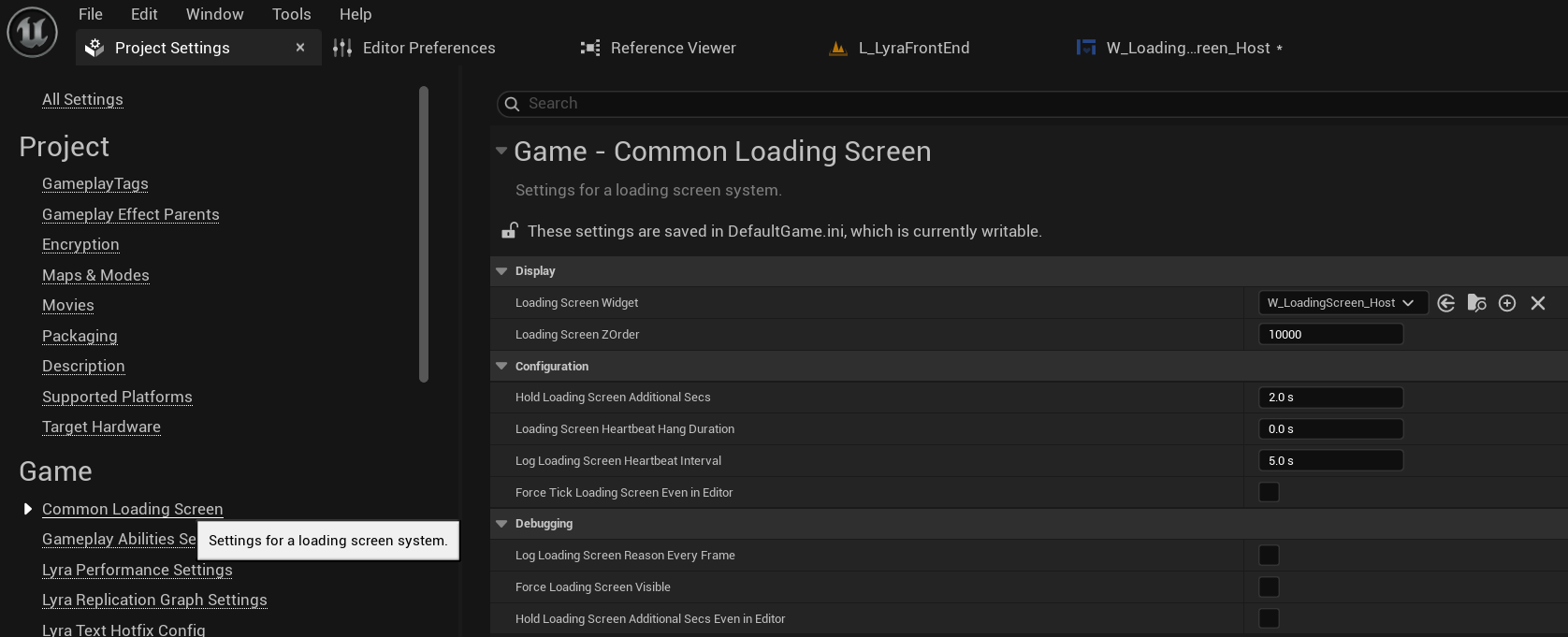

[/Script/CommonLoadingScreen.CommonLoadingScreenSettings]
LoadingScreenWidget=/Game/UI/Foundation/LoadingScreen/W_LoadingScreen_Host.W_LoadingScreen_Host_C
ForceTickLoadingScreenEvenInEditor=False

[/Script/CommonInput.CommonInputSettings]
InputData=/Game/UI/B_CommonInputData.B_CommonInputData_C
bEnableInputMethodThrashingProtection=True
InputMethodThrashingLimit=30
InputMethodThrashingWindowInSeconds=3.000000
InputMethodThrashingCooldownInSeconds=1.000000
bAllowOutOfFocusDeviceInput=True

[/Script/CommonUI.CommonUISettings]
bAutoLoadData=True
DefaultImageResourceObject=None
DefaultThrobberMaterial=/Game/UI/Foundation/Materials/M_UI_Throbber_Base.M_UI_Throbber_Base
DefaultRichTextDataClass=/Game/UI/Foundation/RichTextData/CommonUIRichTextData.CommonUIRichTextData_C
+PlatformTraits=(TagName="Platform.Trait.SupportsWindowedMode")
+PlatformTraits=(TagName="Platform.Trait.CanExitApplication")
+PlatformTraits=(TagName="Platform.Trait.SupportsChangingAudioOutputDevice")
+PlatformTraits=(TagName="Platform.Trait.SupportsBackgroundAudio")
+PlatformTraits=(TagName="Platform.Trait.Input.SupportsMouseAndKeyboard")
+PlatformTraits=(TagName="Platform.Trait.Input.HardwareCursor")
+PlatformTraits=(TagName="")
+PlatformTraits=(TagName="Platform.Trait.NeedsBrightnessAdjustment")
+PlatformTraits=(TagName="Platform.Trait.ReplaySupport")
+PlatformTraits=(TagName="Platform.Trait.SupportsLatencyStats")
+PlatformTraits=(TagName="Platform.Trait.SupportsLatencyMarkers")
CommonButtonAcceptKeyHandling=Ignore

[CheatScript.DebugUI]
+Cmd=Log LogSlate VeryVerbose
+Cmd=Log LogUMG VeryVerbose
+Cmd=Log LogCommonUI VeryVerbose
+Cmd=Log LogCommonInput VeryVerbose
+Cmd=Log LogUIActionRouter VeryVerbose
+Cmd=SlateDebugger.Start

DefaultEngine.ini

[DistillSettings]
+FilesToAlwaysDistill=UI/*

[/Script/Engine.Engine]
GameViewportClientClassName=/Script/LyraGame.LyraGameViewportClient
LocalPlayerClassName=/Script/LyraGame.LyraLocalPlayer

[/Script/Engine.UserInterfaceSettings]
RenderFocusRule=Never
HardwareCursors=()
SoftwareCursors=((Default, "/Game/UI/Foundation/SoftwareCursors/W_ArrowCursor.W_ArrowCursor_C"),(TextEditBeam, "/Game/UI/Foundation/SoftwareCursors/W_ArrowCursor.W_ArrowCursor_C"),(ResizeLeftRight, "/Game/UI/Foundation/SoftwareCursors/W_ArrowCursor.W_ArrowCursor_C"),(ResizeUpDown, "/Game/UI/Foundation/SoftwareCursors/W_ArrowCursor.W_ArrowCursor_C"),(ResizeSouthEast, "/Game/UI/Foundation/SoftwareCursors/W_ArrowCursor.W_ArrowCursor_C"),(ResizeSouthWest, "/Game/UI/Foundation/SoftwareCursors/W_ArrowCursor.W_ArrowCursor_C"),(CardinalCross, "/Game/UI/Foundation/SoftwareCursors/W_ArrowCursor.W_ArrowCursor_C"),(Crosshairs, "/Game/UI/Foundation/SoftwareCursors/W_ArrowCursor.W_ArrowCursor_C"),(Hand, "/Game/UI/Foundation/SoftwareCursors/W_ArrowCursor.W_ArrowCursor_C"),(GrabHand, "/Game/UI/Foundation/SoftwareCursors/W_ArrowCursor.W_ArrowCursor_C"),(GrabHandClosed, "/Game/UI/Foundation/SoftwareCursors/W_ArrowCursor.W_ArrowCursor_C"),(SlashedCircle, "/Game/UI/Foundation/SoftwareCursors/W_ArrowCursor.W_ArrowCursor_C"),(EyeDropper, "/Game/UI/Foundation/SoftwareCursors/W_ArrowCursor.W_ArrowCursor_C"))
ApplicationScale=1.000000
UIScaleRule=ScaleToFit
CustomScalingRuleClass=None
UIScaleCurve=(EditorCurveData=(Keys=((Time=480.000000,Value=0.444000),(Time=720.000000,Value=0.666000),(Time=1080.000000,Value=1.000000),(Time=8640.000000,Value=8.000000)),DefaultValue=340282346638528859811704183484516925440.000000,PreInfinityExtrap=RCCE_Constant,PostInfinityExtrap=RCCE_Constant),ExternalCurve=None)
bAllowHighDPIInGameMode=False
DesignScreenSize=(X=1920,Y=1080)
bLoadWidgetsOnDedicatedServer=True

[/Script/Engine.CollisionProfile]
+Profiles=(Name="UI",CollisionEnabled=QueryOnly,bCanModify=False,ObjectTypeName="WorldDynamic",CustomResponses=((Channel="WorldStatic",Response=ECR_Overlap),(Channel="Pawn",Response=ECR_Overlap),(Channel="Visibility"),(Channel="WorldDynamic",Response=ECR_Overlap),(Channel="Camera",Response=ECR_Overlap),(Channel="PhysicsBody",Response=ECR_Overlap),(Channel="Vehicle",Response=ECR_Overlap),(Channel="Destructible",Response=ECR_Overlap)),HelpMessage="WorldStatic object that overlaps all actors by default. All new custom channels will use its own default response. ")

[ConsoleVariables]
gpad.DefaultLeftStickInnerDeadZone=0.24
gpad.DefaultRightStickInnerDeadZone=0.27

[EnumRemap]
TEXTUREGROUP_Project01.DisplayName=UI With MIPs

覆写UI子系统

需要使用Lyra项目的插件进行覆写

GameUIManagerSubsystem

/**
 * This manager is intended to be replaced by whatever your game needs to
 * actually create, so this class is abstract to prevent it from being created.
 *
 * 这个管理器旨在根据您的游戏实际需求进行替换，因此这个类是抽象类，以防止其被创建。
 *
 * If you just need the basic functionality you will start by sublcassing this
 * subsystem in your own game.
 *
 * 如果您只需要基本功能，那么您只需在自己的游戏中继承此子系统即可。
 *
 */
UCLASS(MinimalAPI, Abstract, config = Game)
class UGameUIManagerSubsystem : public UGameInstanceSubsystem
{
	GENERATED_BODY()

public:
	UGameUIManagerSubsystem() { }

	// 创建策略
	UE_API virtual void Initialize(FSubsystemCollectionBase& Collection) override;
	// 回收策略
	UE_API virtual void Deinitialize() override;
	// 如果开发者没有自定义才需要创建该子系统
	UE_API virtual bool ShouldCreateSubsystem(UObject* Outer) const override;
	// 获取当前策略
	const UGameUIPolicy* GetCurrentUIPolicy() const { return CurrentPolicy; }
	// 获取当前策略
	UGameUIPolicy* GetCurrentUIPolicy() { return CurrentPolicy; }
	// 转发
	UE_API virtual void NotifyPlayerAdded(UCommonLocalPlayer* LocalPlayer);
	// 转发
	UE_API virtual void NotifyPlayerRemoved(UCommonLocalPlayer* LocalPlayer);
	// 转发
	UE_API virtual void NotifyPlayerDestroyed(UCommonLocalPlayer* LocalPlayer);
protected:
	// 切换策略
	UE_API void SwitchToPolicy(UGameUIPolicy* InPolicy);
private:
	// 持有
	UPROPERTY(Transient)
	TObjectPtr<UGameUIPolicy> CurrentPolicy = nullptr;
	// 配置
	UPROPERTY(config, EditAnywhere)
	TSoftClassPtr<UGameUIPolicy> DefaultUIPolicyClass;
};

#undef UE_API

LyraUIManagerSubsystem（UI管理子系统）

LyraUIManagerSubsystem.h

UCLASS()
class ULyraUIManagerSubsystem : public UGameUIManagerSubsystem
{
	GENERATED_BODY()

public:

	ULyraUIManagerSubsystem();

	// 绑定Tick
	virtual void Initialize(FSubsystemCollectionBase& Collection) override;

	// 移除Tick
	virtual void Deinitialize() override;

private:
	// Tick
	bool Tick(float DeltaTime);
	// 更改UI布局的可实现
	void SyncRootLayoutVisibilityToShowHUD();

	FTSTicker::FDelegateHandle TickHandle;
};

LyraUIManagerSubsystem.cpp

void ULyraUIManagerSubsystem::SyncRootLayoutVisibilityToShowHUD()
{
	// Get the current UI policy to determine layout rules
	// 获取当前UI策略来确定布局规则
	if (const UGameUIPolicy* Policy = GetCurrentUIPolicy())
	{
		// Check all local players' HUD visibility states
		// 检查所有本地玩家的HUD可见性状态
		for (const ULocalPlayer* LocalPlayer : GetGameInstance()->GetLocalPlayers())
		{
			bool bShouldShowUI = true;

			// Check if the player controller's HUD is set to show
			// 检查玩家控制器的HUD是否设置为显示
			if (const APlayerController* PC = LocalPlayer->GetPlayerController(GetWorld()))
			{
				const AHUD* HUD = PC->GetHUD();

				// Hide UI if HUD is explicitly set to not show
				// 如果HUD明确设置为不显示，则隐藏UI
				if (HUD && !HUD->bShowHUD)
				{
					bShouldShowUI = false;
				}
			}

			// Apply visibility state to the root layout
			// 将可见性状态应用到根布局
			if (UPrimaryGameLayout* RootLayout = Policy->GetRootLayout(CastChecked<UCommonLocalPlayer>(LocalPlayer)))
			{
				const ESlateVisibility DesiredVisibility = bShouldShowUI ? ESlateVisibility::SelfHitTestInvisible : ESlateVisibility::Collapsed;

				// Only update if visibility has changed to avoid unnecessary operations
				// 仅在可见性发生变化时更新，避免不必要的操作
				if (DesiredVisibility != RootLayout->GetVisibility())
				{
					RootLayout->SetVisibility(DesiredVisibility);
				}
			}
		}
	}
}

LyraUIMessaging（UI消息子系统）

LyraUIMessaging.h

 // UI Messaging subsystem for handling game dialogs and user notifications
 // UI消息子系统，用于处理游戏对话框和用户通知
UCLASS()
class ULyraUIMessaging : public UCommonMessagingSubsystem
{
	GENERATED_BODY()

public:
	ULyraUIMessaging() { }

	// Initialize the messaging subsystem and load dialog classes
	// 初始化消息子系统并加载对话框类
	virtual void Initialize(FSubsystemCollectionBase& Collection) override;

	// Show a confirmation dialog to the user
	// 向用户显示确认对话框
	virtual void ShowConfirmation(UCommonGameDialogDescriptor* DialogDescriptor, FCommonMessagingResultDelegate ResultCallback = FCommonMessagingResultDelegate()) override;

	// Show an error dialog to the user
	// 向用户显示错误对话框
	virtual void ShowError(UCommonGameDialogDescriptor* DialogDescriptor, FCommonMessagingResultDelegate ResultCallback = FCommonMessagingResultDelegate()) override;

private:
	// Loaded confirmation dialog class for instantiation
	// 已加载的确认对话框类，用于实例化
	UPROPERTY()
	TSubclassOf<UCommonGameDialog> ConfirmationDialogClassPtr;

	// Loaded error dialog class for instantiation
	// 已加载的错误对话框类，用于实例化
	UPROPERTY()
	TSubclassOf<UCommonGameDialog> ErrorDialogClassPtr;

	// Config reference to confirmation dialog class (soft reference for async loading)
	// 配置中对确认对话框类的引用（软引用，用于异步加载）
	UPROPERTY(config)
	TSoftClassPtr<UCommonGameDialog> ConfirmationDialogClass;

	// Config reference to error dialog class (soft reference for async loading)
	// 配置中对错误对话框类的引用（软引用，用于异步加载）
	UPROPERTY(config)
	TSoftClassPtr<UCommonGameDialog> ErrorDialogClass;
};

LyraUIMessaging.cpp

UE_DEFINE_GAMEPLAY_TAG_STATIC(TAG_UI_LAYER_MODAL, "UI.Layer.Modal");

void ULyraUIMessaging::Initialize(FSubsystemCollectionBase& Collection)
{
	Super::Initialize(Collection);

	// Synchronously load the dialog classes from their soft references
	// 从软引用同步加载对话框类
	ConfirmationDialogClassPtr = ConfirmationDialogClass.LoadSynchronous();
	ErrorDialogClassPtr = ErrorDialogClass.LoadSynchronous();
}

void ULyraUIMessaging::ShowConfirmation(UCommonGameDialogDescriptor* DialogDescriptor, FCommonMessagingResultDelegate ResultCallback)
{
	// Get the local player to find the root UI layout
	// 获取本地玩家以查找根UI布局
	if (UCommonLocalPlayer* LocalPlayer = GetLocalPlayer<UCommonLocalPlayer>())
	{
		// Access the root layout where dialogs will be displayed
		// 访问将显示对话框的根布局
		if (UPrimaryGameLayout* RootLayout = LocalPlayer->GetRootUILayout())
		{
			// Push the confirmation dialog to the modal layer with configuration
			// 将确认对话框推送到模态层并进行配置
			RootLayout->PushWidgetToLayerStack<UCommonGameDialog>(TAG_UI_LAYER_MODAL, ConfirmationDialogClassPtr, [DialogDescriptor, ResultCallback](UCommonGameDialog& Dialog) {
				Dialog.SetupDialog(DialogDescriptor, ResultCallback);
			});
		}
	}
}

void ULyraUIMessaging::ShowError(UCommonGameDialogDescriptor* DialogDescriptor, FCommonMessagingResultDelegate ResultCallback)
{
	// Get the local player to find the root UI layout
	// 获取本地玩家以查找根UI布局
	if (UCommonLocalPlayer* LocalPlayer = GetLocalPlayer<UCommonLocalPlayer>())
	{
		// Access the root layout where dialogs will be displayed
		// 访问将显示对话框的根布局
		if (UPrimaryGameLayout* RootLayout = LocalPlayer->GetRootUILayout())
		{
			// Push the error dialog to the modal layer with configuration
			// 将错误对话框推送到模态层并进行配置
			RootLayout->PushWidgetToLayerStack<UCommonGameDialog>(TAG_UI_LAYER_MODAL, ErrorDialogClassPtr, [DialogDescriptor, ResultCallback](UCommonGameDialog& Dialog) {
				Dialog.SetupDialog(DialogDescriptor, ResultCallback);
			});
		}
	}
}

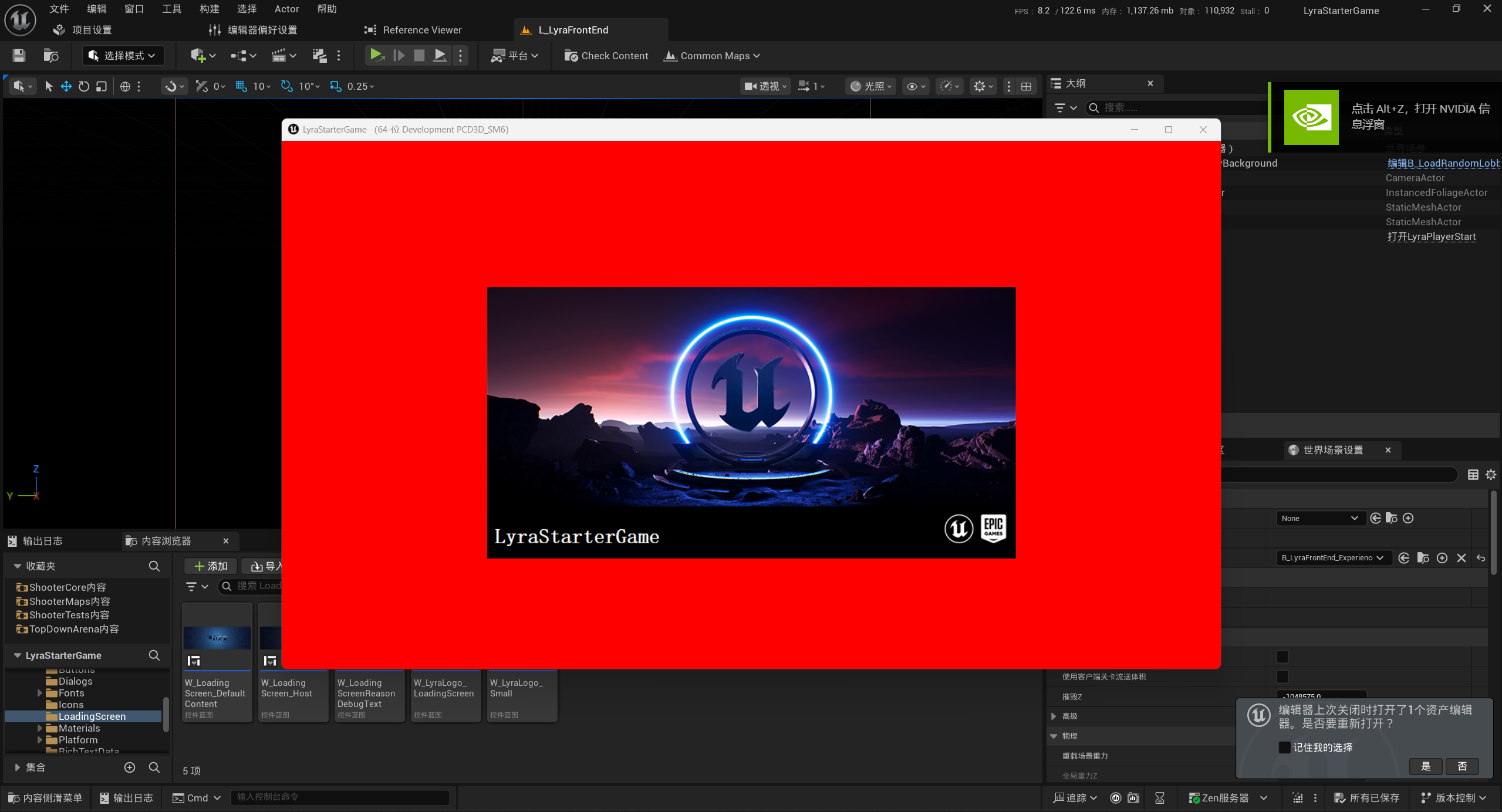

CommonLoadingScreen_Plugins(通用加载界面)

流程介绍

1.定义一个接口,让需要使用到这个功能的实例继承自它. 2.定义了一个开发者设置可以用于在项目中设置,将其变量暴露到命令行中,可以快捷调试 3.定义了一个管理类,负责监听所有接口实例的生命周期,并通过该类分发具体的功能 4.暴露了蓝图静态函数,异步蓝图节点等方式提供便捷地使用.

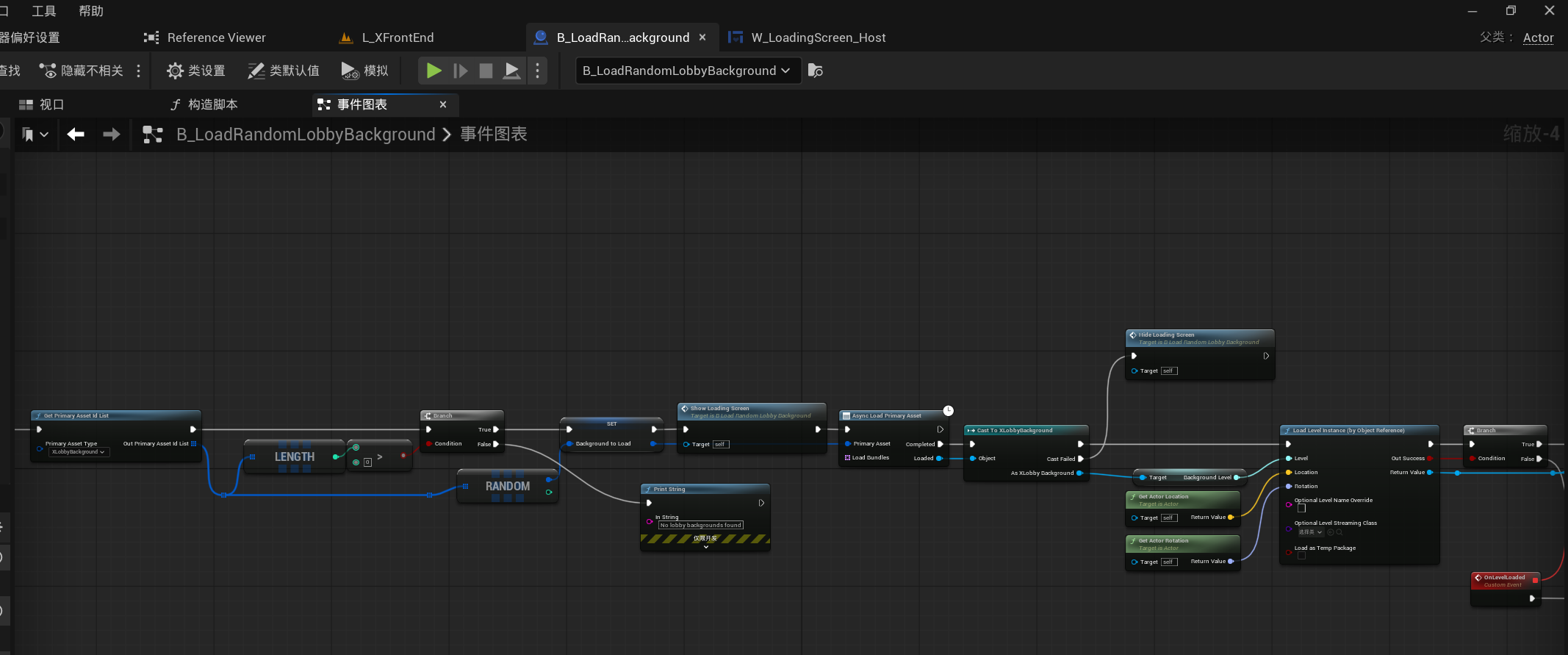

Interface_加载进程接口

/** Interface for things that might cause loading to happen which requires a loading screen to be displayed */
/** 用于表示那些可能会触发加载操作（且该操作需要显示加载界面）的接口 */
UINTERFACE(MinimalAPI, BlueprintType)
class ULoadingProcessInterface : public UInterface
{
	GENERATED_BODY()
};

class ILoadingProcessInterface
{
	GENERATED_BODY()
public:
	// Checks to see if this object implements the interface, and if so asks whether or not we should
	// be currently showing a loading screen
	// 检查该对象是否实现了该接口，如果实现了则询问是否当前应显示加载界面
	static UE_API bool ShouldShowLoadingScreen(UObject* TestObject, FString& OutReason);

	virtual bool ShouldShowLoadingScreen(FString& OutReason) const
	{
		return false;
	}
};

LoadingScreenManager（界面加载管理）

/**
 * Handles showing/hiding the loading screen
 * 控制显示/隐藏加载界面
 */
UCLASS(MinimalAPI)
class ULoadingScreenManager : public UGameInstanceSubsystem, public FTickableGameObject
{
	GENERATED_BODY()

public:
	//~USubsystem interface
	// 绑定地图的变动
	UE_API virtual void Initialize(FSubsystemCollectionBase& Collection) override;
	// 移除加载屏幕的功能
	UE_API virtual void Deinitialize() override;
	// 客户端才创建
	UE_API virtual bool ShouldCreateSubsystem(UObject* Outer) const override;
	//~End of USubsystem interface

	//~FTickableObjectBase interface
	// 每帧检测是否要显示加载屏幕
	UE_API virtual void Tick(float DeltaTime) override;
	// 决定Tick的开关类型
	UE_API virtual ETickableTickType GetTickableTickType() const override;
	// 补充是否需要显示加载屏幕
	UE_API virtual bool IsTickable() const override;
	// ID
	UE_API virtual TStatId GetStatId() const override;
	// 应用的世界
	UE_API virtual UWorld* GetTickableGameObjectWorld() const override;
	//~End of FTickableObjectBase interface

	// 暴露给蓝图询问
	UFUNCTION(BlueprintCallable, Category=LoadingScreen)
	FString GetDebugReasonForShowingOrHidingLoadingScreen() const
	{
		return DebugReasonForShowingOrHidingLoadingScreen;
	}

	/** Returns True when the loading screen is currently being shown */
	/** 当加载界面正在显示时返回 True */
	bool GetLoadingScreenDisplayStatus() const
	{
		return bCurrentlyShowingLoadingScreen;
	}

	/** Called when the loading screen visibility changes  */
	/** 当加载界面的可见性发生变化时调用 */
	DECLARE_MULTICAST_DELEGATE_OneParam(FOnLoadingScreenVisibilityChangedDelegate, bool);
	FORCEINLINE FOnLoadingScreenVisibilityChangedDelegate& OnLoadingScreenVisibilityChangedDelegate() { return LoadingScreenVisibilityChanged; }

	// 由具体的接口实例进行生命周期的注册
	UE_API void RegisterLoadingProcessor(TScriptInterface<ILoadingProcessInterface> Interface);
	UE_API void UnregisterLoadingProcessor(TScriptInterface<ILoadingProcessInterface> Interface);

private:
	// 触发更新
	UE_API void HandlePreLoadMap(const FWorldContext& WorldContext, const FString& MapName);
	// 触发更新
	UE_API void HandlePostLoadMap(UWorld* World);

	/** Determines if we should show or hide the loading screen. Called every frame. */
	/** 用于确定是否应显示或隐藏加载界面。每帧都会调用此函数。*/
	UE_API void UpdateLoadingScreen();

	/** Returns true if we need to be showing the loading screen. */
	/** 若需要显示加载界面，则返回 true 。*/
	UE_API bool CheckForAnyNeedToShowLoadingScreen();

	/** Returns true if we want to be showing the loading screen (if we need to or are artificially forcing it on for other reasons). */
	/** 若我们希望显示加载界面，则返回 true（这意味着我们需要显示该界面，或者是因为其他人为原因而强制显示）。*/
	UE_API bool ShouldShowLoadingScreen();

	/** Returns true if we are in the initial loading flow before this screen should be used */
	/** 如果我们正处于初始加载流程中，且在此屏幕投入使用之前，返回 true */
	UE_API bool IsShowingInitialLoadingScreen() const;

	/** Shows the loading screen. Sets up the loading screen widget on the viewport */
	/** 显示加载界面。在视口上设置加载界面组件 */
	UE_API void ShowLoadingScreen();

	/** Hides the loading screen. The loading screen widget will be destroyed */
	/** 隐藏加载界面。加载界面的组件将会被销毁 */
	UE_API void HideLoadingScreen();

	/** Removes the widget from the viewport */
	/** 将该控件从视口中移除 */
	UE_API void RemoveWidgetFromViewport();

	/** Prevents input from being used in-game while the loading screen is visible */
	/** 在加载界面显示期间，防止输入内容被用于游戏之中 */
	UE_API void StartBlockingInput();

	/** Resumes in-game input, if blocking */
	/** 若存在阻塞情况，则恢复游戏中的输入操作 */
	UE_API void StopBlockingInput();

	// 变更由于切换加载屏幕的性能影响
	UE_API void ChangePerformanceSettings(bool bEnabingLoadingScreen);

private:
	/** Delegate broadcast when the loading screen visibility changes */
	/** 当加载界面的可见性发生变化时，执行广播操作 */
	FOnLoadingScreenVisibilityChangedDelegate LoadingScreenVisibilityChanged;

	/** A reference to the loading screen widget we are displaying (if any) */
	/** 指向我们正在显示的加载屏幕组件的引用（如果有的话） */
	TSharedPtr<SWidget> LoadingScreenWidget;

	/** Input processor to eat all input while the loading screen is shown */
	/** 用于在加载界面显示期间接收所有输入的输入处理器 */
	TSharedPtr<IInputProcessor> InputPreProcessor;

	/** External loading processors, components maybe actors that delay the loading. */
	/** 外部加载处理器、组件可能包括那些会延迟加载过程的执行者。*/
	TArray<TWeakInterfacePtr<ILoadingProcessInterface>> ExternalLoadingProcessors;

	/** The reason why the loading screen is up (or not) */
	/** 加载界面是否显示（或未显示）的原因 */
	FString DebugReasonForShowingOrHidingLoadingScreen;

	/** The time when we started showing the loading screen */
	/** 我们开始显示加载界面的时间 */
	double TimeLoadingScreenShown = 0.0;

	/** The time the loading screen most recently wanted to be dismissed (might still be up due to a min display duration requirement) **/
	/** 加载界面最后一次想要被关闭的时间（由于最小显示时长要求，该界面可能仍处于显示状态） **/
	double TimeLoadingScreenLastDismissed = -1.0;

	/** The time until the next log for why the loading screen is still up */
	/** 下一次记录加载屏幕仍处于显示状态的原因所需的时间 */
	double TimeUntilNextLogHeartbeatSeconds = 0.0;

	/** True when we are between PreLoadMap and PostLoadMap */
	/** 当我们处于“预加载地图”与“后加载地图”之间时为真 */
	bool bCurrentlyInLoadMap = false;

	/** True when the loading screen is currently being shown */
	/** 当加载界面正在显示时为真 */
	bool bCurrentlyShowingLoadingScreen = false;
};

输入屏蔽

头文件(.h)

	/** Prevents input from being used in-game while the loading screen is visible */
	/** 在加载界面显示期间，防止输入内容被用于游戏之中 */
	UE_API void StartBlockingInput();

	/** Resumes in-game input, if blocking */
	/** 若存在阻塞情况，则恢复游戏中的输入操作 */
	UE_API void StopBlockingInput();

源文件(.cpp)

// Input processor to throw in when loading screen is shown
// This will capture any inputs, so active menus under the loading screen will not interact
// 在加载界面显示时使用的输入处理器
// 此处理器将捕获所有输入操作，因此加载界面下的活动菜单将不会与之交互
class FLoadingScreenInputPreProcessor : public IInputProcessor
{
public:
	FLoadingScreenInputPreProcessor() { }
	virtual ~FLoadingScreenInputPreProcessor() { }

	bool CanEatInput() const
	{
		return !GIsEditor;
	}

	//~IInputProcess interface
	virtual void Tick(const float DeltaTime, FSlateApplication& SlateApp, TSharedRef<ICursor> Cursor) override { }

	virtual bool HandleKeyDownEvent(FSlateApplication& SlateApp, const FKeyEvent& InKeyEvent) override { return CanEatInput(); }
	virtual bool HandleKeyUpEvent(FSlateApplication& SlateApp, const FKeyEvent& InKeyEvent) override { return CanEatInput(); }
	virtual bool HandleAnalogInputEvent(FSlateApplication& SlateApp, const FAnalogInputEvent& InAnalogInputEvent) override { return CanEatInput(); }
	virtual bool HandleMouseMoveEvent(FSlateApplication& SlateApp, const FPointerEvent& MouseEvent) override { return CanEatInput(); }
	virtual bool HandleMouseButtonDownEvent(FSlateApplication& SlateApp, const FPointerEvent& MouseEvent) override { return CanEatInput(); }
	virtual bool HandleMouseButtonUpEvent(FSlateApplication& SlateApp, const FPointerEvent& MouseEvent) override { return CanEatInput(); }
	virtual bool HandleMouseButtonDoubleClickEvent(FSlateApplication& SlateApp, const FPointerEvent& MouseEvent) override { return CanEatInput(); }
	virtual bool HandleMouseWheelOrGestureEvent(FSlateApplication& SlateApp, const FPointerEvent& InWheelEvent, const FPointerEvent* InGestureEvent) override { return CanEatInput(); }
	virtual bool HandleMotionDetectedEvent(FSlateApplication& SlateApp, const FMotionEvent& MotionEvent) override { return CanEatInput(); }
	//~End of IInputProcess interface
};

更新加载屏幕可视性

void ULoadingScreenManager::UpdateLoadingScreen()
{
	bool bLogLoadingScreenStatus = LoadingScreenCVars::LogLoadingScreenReasonEveryFrame;

	if (ShouldShowLoadingScreen())
	{
		const UCommonLoadingScreenSettings* Settings = GetDefault<UCommonLoadingScreenSettings>();

		// If we don't make it to the specified checkpoint in the given time will trigger the hang detector so we can better determine where progress stalled.
		// 如果我们未能在规定时间内到达指定的检查点，就会触发挂起检测机制，这样我们就能更清楚地了解进度停滞的具体位置。
 		FThreadHeartBeat::Get().MonitorCheckpointStart(GetFName(), Settings->LoadingScreenHeartbeatHangDuration);

		ShowLoadingScreen();

 		if ((Settings->LogLoadingScreenHeartbeatInterval > 0.0f) && (TimeUntilNextLogHeartbeatSeconds <= 0.0))
 		{
			bLogLoadingScreenStatus = true;
 			TimeUntilNextLogHeartbeatSeconds = Settings->LogLoadingScreenHeartbeatInterval;
 		}
	}
	else
	{
		HideLoadingScreen();
		/* 当检查点结束时，由线程调用 */
 		FThreadHeartBeat::Get().MonitorCheckpointEnd(GetFName());
	}

	if (bLogLoadingScreenStatus)
	{
		UE_LOG(LogLoadingScreen, Log, TEXT("Loading screen showing: %d. Reason: %s"), bCurrentlyShowingLoadingScreen ? 1 : 0, *DebugReasonForShowingOrHidingLoadingScreen);
	}
}

当下计算可视性

bool ULoadingScreenManager::CheckForAnyNeedToShowLoadingScreen()
{
	// Start out with 'unknown' reason in case someone forgets to put a reason when changing this in the future.
	// 一开始将原因设为“未知”，以防日后有人在修改此项内容时忘记填写原因。
	DebugReasonForShowingOrHidingLoadingScreen = TEXT("Reason for Showing/Hiding LoadingScreen is unknown!");

	const UGameInstance* LocalGameInstance = GetGameInstance();

	// 是否强制显示
	if (LoadingScreenCVars::ForceLoadingScreenVisible)
	{
		DebugReasonForShowingOrHidingLoadingScreen = FString(TEXT("CommonLoadingScreen.AlwaysShow is true"));
		return true;
	}

	const FWorldContext* Context = LocalGameInstance->GetWorldContext();
	if (Context == nullptr)
	{
		// We don't have a world context right now... better show a loading screen
		// 目前我们还没有全球性的背景信息……最好显示一个加载界面
		DebugReasonForShowingOrHidingLoadingScreen = FString(TEXT("The game instance has a null WorldContext"));
		return true;
	}

	UWorld* World = Context->World();
	// 无世界
	if (World == nullptr)
	{
		DebugReasonForShowingOrHidingLoadingScreen = FString(TEXT("We have no world (FWorldContext's World() is null)"));
		return true;
	}

	AGameStateBase* GameState = World->GetGameState<AGameStateBase>();
	// 无GameState
	if (GameState == nullptr)
	{
		// The game state has not yet replicated.
		DebugReasonForShowingOrHidingLoadingScreen = FString(TEXT("GameState hasn't yet replicated (it's null)"));
		return true;
	}

	// 加载地图中
	if (bCurrentlyInLoadMap)
	{
		// Show a loading screen if we are in LoadMap
		// 如果处于“加载地图”状态，则显示加载界面
		DebugReasonForShowingOrHidingLoadingScreen = FString(TEXT("bCurrentlyInLoadMap is true"));
		return true;
	}

	/** 用于处理待连接客户端的跳转 URL */
	if (!Context->TravelURL.IsEmpty())
	{
		// Show a loading screen when pending travel
		// 当有待处理的行程时显示加载界面
		DebugReasonForShowingOrHidingLoadingScreen = FString(TEXT("We have pending travel (the TravelURL is not empty)"));
		return true;
	}

	if (Context->PendingNetGame != nullptr)
	{
		// Connecting to another server
		// 连接到另一台服务器
		DebugReasonForShowingOrHidingLoadingScreen = FString(TEXT("We are connecting to another server (PendingNetGame != nullptr)"));
		return true;
	}

	// 世界还没开始
	if (!World->HasBegunPlay())
	{
		DebugReasonForShowingOrHidingLoadingScreen = FString(TEXT("World hasn't begun play"));
		return true;
	}

	if (World->IsInSeamlessTravel())
	{
		// Show a loading screen during seamless travel
		// 在无缝切换过程中显示加载界面
		DebugReasonForShowingOrHidingLoadingScreen = FString(TEXT("We are in seamless travel"));
		return true;
	}

	// Ask the game state if it needs a loading screen
	// 调用游戏状态对象，询问其是否需要加载界面
	if (ILoadingProcessInterface::ShouldShowLoadingScreen(GameState, /*out*/ DebugReasonForShowingOrHidingLoadingScreen))
	{
		return true;
	}

	// Ask any game state components if they need a loading screen
	// 要求任何游戏状态组件告知自身是否需要加载界面
	for (UActorComponent* TestComponent : GameState->GetComponents())
	{
		if (ILoadingProcessInterface::ShouldShowLoadingScreen(TestComponent, /*out*/ DebugReasonForShowingOrHidingLoadingScreen))
		{
			return true;
		}
	}

	// Ask any of the external loading processors that may have been registered.  These might be actors or components
	// that were registered by game code to tell us to keep the loading screen up while perhaps something finishes
	// streaming in.
	// 联系任何可能已注册的外部加载处理器。这些处理器可能是由游戏代码注册的演员或组件，它们会告知我们应保持加载界面处于显示状态，以便在某些内容完成加载传输时能够显示出来。
	for (const TWeakInterfacePtr<ILoadingProcessInterface>& Processor : ExternalLoadingProcessors)
	{
		if (ILoadingProcessInterface::ShouldShowLoadingScreen(Processor.GetObject(), /*out*/ DebugReasonForShowingOrHidingLoadingScreen))
		{
			return true;
		}
	}

	// Check each local player
	// 检查每个本地玩家
	bool bFoundAnyLocalPC = false;
	bool bMissingAnyLocalPC = false;

	for (ULocalPlayer* LP : LocalGameInstance->GetLocalPlayers())
	{
		if (LP != nullptr)
		{
			if (APlayerController* PC = LP->PlayerController)
			{
				bFoundAnyLocalPC = true;

				// Ask the PC itself if it needs a loading screen
				// 要求电脑自身确认是否需要加载画面
				if (ILoadingProcessInterface::ShouldShowLoadingScreen(PC, /*out*/ DebugReasonForShowingOrHidingLoadingScreen))
				{
					return true;
				}

				// Ask any PC components if they need a loading screen
				// 询问任何电脑组件是否需要加载画面
				for (UActorComponent* TestComponent : PC->GetComponents())
				{
					if (ILoadingProcessInterface::ShouldShowLoadingScreen(TestComponent, /*out*/ DebugReasonForShowingOrHidingLoadingScreen))
					{
						return true;
					}
				}
			}
			else
			{
				bMissingAnyLocalPC = true;
			}
		}
	}

	UGameViewportClient* GameViewportClient = LocalGameInstance->GetGameViewportClient();
	const bool bIsInSplitscreen = GameViewportClient->GetCurrentSplitscreenConfiguration() != ESplitScreenType::None;

	// In splitscreen we need all player controllers to be present
	// 在分屏模式下，我们需要确保所有玩家控制器都处于开启状态
	if (bIsInSplitscreen && bMissingAnyLocalPC)
	{
		DebugReasonForShowingOrHidingLoadingScreen = FString(TEXT("At least one missing local player controller in splitscreen"));
		return true;
	}

	// And in non-splitscreen we need at least one player controller to be present
	// 在非分屏模式下，我们至少需要有一个玩家控制器在场。
	if (!bIsInSplitscreen && !bFoundAnyLocalPC)
	{
		DebugReasonForShowingOrHidingLoadingScreen = FString(TEXT("Need at least one local player controller"));
		return true;
	}

	// Victory! The loading screen can go away now
	// 胜利！加载画面现在可以消失了
	DebugReasonForShowingOrHidingLoadingScreen = TEXT("(nothing wants to show it anymore)");
	return false;
}

延时补充可视性

	const UCommonLoadingScreenSettings* Settings = GetDefault<UCommonLoadingScreenSettings>();

	// Check debugging commands that force the state one way or another
	// 检查那些能够强制改变状态的调试命令
#if !UE_BUILD_SHIPPING
	// 命令行无加载界面
	static bool bCmdLineNoLoadingScreen = FParse::Param(FCommandLine::Get(), TEXT("NoLoadingScreen"));
	if (bCmdLineNoLoadingScreen)
	{
		DebugReasonForShowingOrHidingLoadingScreen = FString(TEXT("CommandLine has 'NoLoadingScreen'"));
		return false;
	}
#endif

	// Can't show a loading screen if there's no game viewport
	// 若没有游戏视图区域，则无法显示加载屏幕
	UGameInstance* LocalGameInstance = GetGameInstance();
	if (LocalGameInstance->GetGameViewportClient() == nullptr)
	{
		return false;
	}

	// Check for a need to show the loading screen
	// 检查是否需要显示加载界面
	const bool bNeedToShowLoadingScreen = CheckForAnyNeedToShowLoadingScreen();

	// Keep the loading screen up a bit longer if desired
	// 如果需要的话，可以让加载界面多显示一段时间
	bool bWantToForceShowLoadingScreen = false;
	if (bNeedToShowLoadingScreen)
	{
		// Still need to show it
		// 仍需展示它
		TimeLoadingScreenLastDismissed = -1.0;
	}
	else
	{
		// Don't *need* to show the screen anymore, but might still want to for a bit
		// 无需再显示该屏幕了，但可能仍需要展示一小段时间。
		const double CurrentTime = FPlatformTime::Seconds();
		const bool bCanHoldLoadingScreen = (!GIsEditor || Settings->HoldLoadingScreenAdditionalSecsEvenInEditor);
		const double HoldLoadingScreenAdditionalSecs = bCanHoldLoadingScreen ? LoadingScreenCVars::HoldLoadingScreenAdditionalSecs : 0.0;

		if (TimeLoadingScreenLastDismissed < 0.0)
		{
			TimeLoadingScreenLastDismissed = CurrentTime;
		}
		const double TimeSinceScreenDismissed = CurrentTime - TimeLoadingScreenLastDismissed;

		// hold for an extra X seconds, to cover up streaming
		// 延长等待 X 秒，以弥补数据传输的延迟
		if ((HoldLoadingScreenAdditionalSecs > 0.0) && (TimeSinceScreenDismissed < HoldLoadingScreenAdditionalSecs))
		{
			// Make sure we're rendering the world at this point, so that textures will actually stream in
			//@TODO: If bNeedToShowLoadingScreen bounces back true during this window, we won't turn this off again...

			// 确保此时我们正在渲染整个世界，这样纹理才能真正加载进来
			//@待办事项：如果在这一窗口期间 bNeedToShowLoadingScreen 的值反向变为 true，我们就不会再次将其关闭……

			UGameViewportClient* GameViewportClient = GetGameInstance()->GetGameViewportClient();
			/** 是否设置为禁用世界渲染 */
			// 开始渲染3D画面
			GameViewportClient->bDisableWorldRendering = false;

			DebugReasonForShowingOrHidingLoadingScreen = FString::Printf(TEXT("Keeping loading screen up for an additional %.2f seconds to allow texture streaming"), HoldLoadingScreenAdditionalSecs);
			bWantToForceShowLoadingScreen = true;
		}
	}

	return bNeedToShowLoadingScreen || bWantToForceShowLoadingScreen;

调用执行

void ULoadingScreenManager::Initialize(FSubsystemCollectionBase& Collection)
{
	/** 在加载地图操作之初发送 */
	FCoreUObjectDelegates::PreLoadMapWithContext.AddUObject(this, &ThisClass::HandlePreLoadMap);

	/** 在加载地图操作完成后发送 */
	FCoreUObjectDelegates::PostLoadMapWithWorld.AddUObject(this, &ThisClass::HandlePostLoadMap);

	const UGameInstance* LocalGameInstance = GetGameInstance();
	check(LocalGameInstance);
}


void ULoadingScreenManager::HandlePreLoadMap(const FWorldContext& WorldContext, const FString& MapName)
{
	if (WorldContext.OwningGameInstance == GetGameInstance())
	{
		bCurrentlyInLoadMap = true;

		// Update the loading screen immediately if the engine is initialized
		// 若引擎已初始化，则立即更新加载界面
		if (GEngine->IsInitialized())
		{
			UpdateLoadingScreen();
		}
	}
}

void ULoadingScreenManager::Tick(float DeltaTime)
{
	UpdateLoadingScreen();

	TimeUntilNextLogHeartbeatSeconds = FMath::Max(TimeUntilNextLogHeartbeatSeconds - DeltaTime, 0.0);
}

实例的生命周期

注意此处只是用于手动的.实际上会自动访问GameState及其组件是否需要这个功能!

	// 由具体的接口实例进行生命周期的注册
	UE_API void RegisterLoadingProcessor(TScriptInterface<ILoadingProcessInterface> Interface);
	UE_API void UnregisterLoadingProcessor(TScriptInterface<ILoadingProcessInterface> Interface);

/*static*/ ULoadingProcessTask* ULoadingProcessTask::CreateLoadingScreenProcessTask(UObject* WorldContextObject, const FString& ShowLoadingScreenReason)
{
	UWorld* World = GEngine->GetWorldFromContextObject(WorldContextObject, EGetWorldErrorMode::LogAndReturnNull);
	UGameInstance* GameInstance = World ? World->GetGameInstance() : nullptr;
	ULoadingScreenManager* LoadingScreenManager = GameInstance ? GameInstance->GetSubsystem<ULoadingScreenManager>() : nullptr;

	if (LoadingScreenManager)
	{
		ULoadingProcessTask* NewLoadingTask = NewObject<ULoadingProcessTask>(LoadingScreenManager);
		NewLoadingTask->SetShowLoadingScreenReason(ShowLoadingScreenReason);

		LoadingScreenManager->RegisterLoadingProcessor(NewLoadingTask);

		return NewLoadingTask;
	}

	return nullptr;
}

外部闻讯

代理

private:
	/** Delegate broadcast when the loading screen visibility changes */
	/** 当加载界面的可见性发生变化时，执行广播操作 */
	FOnLoadingScreenVisibilityChangedDelegate LoadingScreenVisibilityChanged;

访问

	// 暴露给蓝图询问
	UFUNCTION(BlueprintCallable, Category=LoadingScreen)
	FString GetDebugReasonForShowingOrHidingLoadingScreen() const
	{
		return DebugReasonForShowingOrHidingLoadingScreen;
	}

CommonLoadingScreenSettings(通用界面加载设置)

具体使用是在编辑器中ProjectSettings->Gane->Common Loading Screen进行配置使用

/**
 * Settings for a loading screen system.
 * 加载屏幕系统的设置。
 */
UCLASS(config=Game, defaultconfig, meta=(DisplayName="Common Loading Screen"))
class UCommonLoadingScreenSettings : public UDeveloperSettingsBackedByCVars
{
	GENERATED_BODY()

public:
	UCommonLoadingScreenSettings();

public:

	// The widget to load for the loading screen.
	// 用于加载屏幕的加载组件。
	UPROPERTY(config, EditAnywhere, Category=Display, meta=(MetaClass="/Script/UMG.UserWidget"))
	FSoftClassPath LoadingScreenWidget;

	// The z-order of the loading screen widget in the viewport stack
	// 视图堆栈中加载屏幕组件的层级顺序
	UPROPERTY(config, EditAnywhere, Category=Display)
	int32 LoadingScreenZOrder = 10000;

	// How long to hold the loading screen up after other loading finishes (in seconds) to
	// try to give texture streaming a chance to avoid blurriness
	//
	// Note: This is not normally applied in the editor for iteration time, but can be
	// enabled via HoldLoadingScreenAdditionalSecsEvenInEditor
	// 其他加载完成之后，要将加载界面保持显示多长时间（以秒为单位），以期让纹理流加载有机会避免出现模糊现象//
	// 注意：通常情况下，此功能不适用于编辑器中的迭代时间，但可以通过“HoldLoadingScreenAdditionalSecsEvenInEditor”选项来启用。
 	UPROPERTY(config, EditAnywhere, Category=Configuration, meta=(ForceUnits=s, ConsoleVariable="CommonLoadingScreen.HoldLoadingScreenAdditionalSecs"))
	float HoldLoadingScreenAdditionalSecs = 2.0f;

	// The interval in seconds beyond which the loading screen is considered permanently hung (if non-zero).
	// 超过此时间间隔（以秒为单位）后，加载界面将被视为永久性卡住（若该值非零）。
 	UPROPERTY(config, EditAnywhere, Category=Configuration, meta=(ForceUnits=s))
	float LoadingScreenHeartbeatHangDuration = 0.0f;

	// The interval in seconds between each log of what is keeping a loading screen up (if non-zero).
	// 每次记录加载屏幕保持状态变化的时间间隔（若不为零）。单位：秒。
 	UPROPERTY(config, EditAnywhere, Category=Configuration, meta=(ForceUnits=s))
	float LogLoadingScreenHeartbeatInterval = 5.0f;

	// When true, the reason the loading screen is shown or hidden will be printed to the log every frame.
	// 若为真，则每次渲染时都会将加载界面显示或隐藏的原因记录到日志中。
	UPROPERTY(Transient, EditAnywhere, Category=Debugging, meta=(ConsoleVariable="CommonLoadingScreen.LogLoadingScreenReasonEveryFrame"))
	bool LogLoadingScreenReasonEveryFrame = 0;

	// Force the loading screen to be displayed (useful for debugging)
	// 强制显示加载界面（用于调试之用）
	UPROPERTY(Transient, EditAnywhere, Category=Debugging, meta=(ConsoleVariable="CommonLoadingScreen.AlwaysShow"))
	bool ForceLoadingScreenVisible = false;

	// Should we apply the additional HoldLoadingScreenAdditionalSecs delay even in the editor
	// (useful when iterating on loading screens)
	// 我们是否应该在编辑器中也使用额外的“保持加载界面显示时间（额外秒数）”这一设置呢？
	// （在对加载界面进行改进时，此设置很有用）
	UPROPERTY(Transient, EditAnywhere, Category=Debugging)
	bool HoldLoadingScreenAdditionalSecsEvenInEditor = false;

	// Should we apply the additional HoldLoadingScreenAdditionalSecs delay even in the editor
	// (useful when iterating on loading screens)
	// 我们是否应该在编辑器中也使用额外的“保持加载界面显示时间（额外秒数）”这一设置呢？
	// （在对加载界面进行改进时，此设置很有用）
	UPROPERTY(config, EditAnywhere, Category=Configuration)
	bool ForceTickLoadingScreenEvenInEditor = true;
};

LoadingProcessTask(加载进程任务)

// 创建一个接口实例,用来临时显示加载屏幕.
// 注意一定要持有这个对象,防止GC
// 和异步蓝图节点的写法很像.
UCLASS(MinimalAPI, BlueprintType)
class ULoadingProcessTask : public UObject, public ILoadingProcessInterface
{
	GENERATED_BODY()

public:
	UFUNCTION(BlueprintCallable, meta=(WorldContext = "WorldContextObject"))
	static UE_API ULoadingProcessTask* CreateLoadingScreenProcessTask(UObject* WorldContextObject, const FString& ShowLoadingScreenReason);

public:
	ULoadingProcessTask() { }

	UFUNCTION(BlueprintCallable)
	UE_API void Unregister();

	UFUNCTION(BlueprintCallable)
	UE_API void SetShowLoadingScreenReason(const FString& InReason);

	UE_API virtual bool ShouldShowLoadingScreen(FString& OutReason) const override;

	FString Reason;
};

蓝图调用

此处为B_LoadRandomLobbyBackground类的蓝图

代码实现

用来在前端界面流送背景关卡的资产定义

/**
 * Developer settings / editor cheats
 * 开发者设置 / 编辑器作弊功能
 *
 * 用来加载背景的资产,这个资产需要进行扫描
 */
UCLASS(config=EditorPerProjectUserSettings, MinimalAPI)
class ULyraLobbyBackground : public UPrimaryDataAsset
{
	GENERATED_BODY()

public:

	UPROPERTY(EditAnywhere, BlueprintReadOnly)
	TSoftObjectPtr<UWorld> BackgroundLevel;
};

/*static*/ ULoadingProcessTask* ULoadingProcessTask::CreateLoadingScreenProcessTask(UObject* WorldContextObject, const FString& ShowLoadingScreenReason)
{
	UWorld* World = GEngine->GetWorldFromContextObject(WorldContextObject, EGetWorldErrorMode::LogAndReturnNull);
	UGameInstance* GameInstance = World ? World->GetGameInstance() : nullptr;
	ULoadingScreenManager* LoadingScreenManager = GameInstance ? GameInstance->GetSubsystem<ULoadingScreenManager>() : nullptr;

	if (LoadingScreenManager)
	{
		ULoadingProcessTask* NewLoadingTask = NewObject<ULoadingProcessTask>(LoadingScreenManager);
		NewLoadingTask->SetShowLoadingScreenReason(ShowLoadingScreenReason);

		LoadingScreenManager->RegisterLoadingProcessor(NewLoadingTask);

		return NewLoadingTask;
	}

	return nullptr;
}

void ULoadingProcessTask::Unregister()
{
	ULoadingScreenManager* LoadingScreenManager = Cast<ULoadingScreenManager>(GetOuter());
	LoadingScreenManager->UnregisterLoadingProcessor(this);
}

void ULoadingProcessTask::SetShowLoadingScreenReason(const FString& InReason)
{
	Reason = InReason;
}

bool ULoadingProcessTask::ShouldShowLoadingScreen(FString& OutReason) const
{
	OutReason = Reason;
	return true;
}

记得配置检索路径! LyraLobbyBackground在ShooterMaps.GameFeatureData中! 不配置话的就找不到这个资产!!!!

[/Script/Engine.AssetManagerSettings]
(PrimaryAssetType="LyraLobbyBackground",AssetBaseClass="/Script/LyraGame.LyraLobbyBackground",bHasBlueprintClasses=False,bIsEditorOnly=False,Directories=((Path="Items/Backgrounds")),SpecificAssets=,Rules=(Priority=-1,ChunkId=-1,bApplyRecursively=True,CookRule=AlwaysCook))

CommonStartupLoadingScreen(通用启动加载界面)

主要实现效果

SCommonPreLoadingScreenWidget

头文件(.h)

class FReferenceCollector;

class SCommonPreLoadingScreenWidget : public SCompoundWidget, public FGCObject
{
public:
	SLATE_BEGIN_ARGS(SCommonPreLoadingScreenWidget) {}
    SLATE_END_ARGS()

    void Construct(const FArguments& InArgs);

	//~ Begin FGCObject interface
	virtual void AddReferencedObjects(FReferenceCollector& Collector) override;
	virtual FString GetReferencerName() const override;
	//~ End FGCObject interface
private:
};

源文件(.cpp)

void SCommonPreLoadingScreenWidget::Construct(const FArguments& InArgs)
{
	// Create the widget content
	// 创建控件内容
	ChildSlot
		[
			SNew(SBorder)	// Create a new border widget
				// 创建一个新的边框控件
				.BorderImage(FCoreStyle::Get().GetBrush("WhiteBrush"))	// Set border image to white brush
				// 设置边框图像为白色画刷
				.BorderBackgroundColor(FLinearColor::Black)				// Set background color to black
				// 设置背景颜色为黑色
				.Padding(0)												// Set padding to zero
				// 设置内边距为零
		];
}

void SCommonPreLoadingScreenWidget::AddReferencedObjects(FReferenceCollector& Collector)
{
	//WidgetAssets.AddReferencedObjects(Collector);
}

FString SCommonPreLoadingScreenWidget::GetReferencerName() const
{
	return TEXT("SCommonPreLoadingScreenWidget");
}

Slate界面实例化位置

头文件(.h)

//基类
//用于处理预加载屏幕相关逻辑的基类实现，负责控制/更新预加载屏幕的用户界面
//设计为可被特定游戏插件重写，该插件会调用FPreloadScreeManage::RegisterPreLoadScreen方法，以便预加载屏幕管理器能够正确调用相关函数

class FCommonPreLoadScreen : public FPreLoadScreenBase
{
public:

    /*** IPreLoadScreen Implementation ***/
	virtual void Init() override;
    virtual EPreLoadScreenTypes GetPreLoadScreenType() const override { return EPreLoadScreenTypes::EngineLoadingScreen; }
    virtual TSharedPtr<SWidget> GetWidget() override { return EngineLoadingWidget; }
private:

    TSharedPtr<SWidget> EngineLoadingWidget;
};

源文件(.cpp)

void FCommonPreLoadScreen::Init()
{
	if (!GIsEditor && FApp::CanEverRender())
	{
		EngineLoadingWidget = SNew(SCommonPreLoadingScreenWidget);
	}
}

具体实现流程

void FCommonPreLoadScreen::Init()
{
	if (!GIsEditor && FApp::CanEverRender())
	{
		EngineLoadingWidget = SNew(SCommonPreLoadingScreenWidget);
	}
}

项目报错情况

项目Experience资产未正常配置

请确保资产管理器中对于Experience的检索定义已确认.否则会出现如下崩溃:

日志详细级别	打印在控制台中	打印在编辑器日志中	文本颜色	其他信息
日志（Log）	❌ 否	✅ 是	⚫ 灰色	❌ 不适用
错误（Error）	✅ 是	✅ 是	🔴 红色	体验资源加载失败，Asset ID 解析错误
日志（Log）	❌ 否	✅ 是	⚫ 灰色	❌ 不适用
警告（Warning）	✅ 是	✅ 是	🟡 黄色	脚本堆栈为空
错误（Error）	✅ 是	✅ 是	🔴 红色	断言失败：AssetClass，文件 LyraExperienceManagerComponent.cpp:91
日志（Log）	❌ 否	✅ 是	⚫ 灰色	Windows 系统错误：操作成功完成 (0)

未修改配置导致崩溃

DefaultGame.ini

[/Script/LyraGame.LyraUIManagerSubsystem]
; 默认的UI管理策略
DefaultUIPolicyClass=/Game/UI/B_LyraUIPolicy.B_LyraUIPolicy_C

如果没有配置的话,会在这里崩溃!因为空指针了!

void UGameUIManagerSubsystem::NotifyPlayerAdded(UCommonLocalPlayer* LocalPlayer)
{
	if (ensure(LocalPlayer) && CurrentPolicy)
	{
		CurrentPolicy->NotifyPlayerAdded(LocalPlayer);
	}
}

未显示加载界面

DefaultGame.ini

[/Script/CommonLoadingScreen.CommonLoadingScreenSettings]
; 默认的加载界面
LoadingScreenWidget=/Game/UI/Foundation/LoadingScreen/W_LoadingScreen_Host.W_LoadingScreen_Host_C
; 强制Tick加载界面即使是在编辑器
ForceTickLoadingScreenEvenInEditor=False

如果没配置 蓝图运行会提示日志报错

PIE: Error: CreateWidget called with a null class.
LogLoadingScreen: Error: Failed to load the loading screen widget , falling back to placeholder.

需在GameMode中使用CommonPlayerController类
