对话框

对话框

用户界面用于向用户提示信息进行确认的对话框. 该部分内容主要包含在CommomGame插件里面.

对话框可能结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

/** Possible results from a dialog */
/** 对话可能出现的结果 */
UENUM(BlueprintType)
enum class ECommonMessagingResult : uint8
{
	/** The "yes" button was pressed */
	/** “是”按钮已被按下 */
	Confirmed,
	/** The "no" button was pressed */
	/** “拒绝”按钮已被按下 */
	Declined,
	/** The "ignore/cancel" button was pressed */
	/** “忽略/取消”按钮已被按下 */
	Cancelled,
	/** The dialog was explicitly killed (no user input) */
	/** 该对话框已被明确关闭（未收到用户输入） */
	Killed,
	Unknown UMETA(Hidden)
};

DECLARE_DELEGATE_OneParam(FCommonMessagingResultDelegate, ECommonMessagingResult /* Result */);

对话框子系统

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

UCLASS(MinimalAPI, config = Game)
class UCommonMessagingSubsystem : public ULocalPlayerSubsystem
{
	GENERATED_BODY()
public:
	UCommonMessagingSubsystem() { }

	// 无作用
	UE_API virtual void Initialize(FSubsystemCollectionBase& Collection) override;
	// 无作用
	UE_API virtual void Deinitialize() override;
	// 避免重复创建
	UE_API virtual bool ShouldCreateSubsystem(UObject* Outer) const override;

	// 仅接口未实现
	UE_API virtual void ShowConfirmation(UCommonGameDialogDescriptor* DialogDescriptor, FCommonMessagingResultDelegate ResultCallback = FCommonMessagingResultDelegate());
	// 仅接口未实现
	UE_API virtual void ShowError(UCommonGameDialogDescriptor* DialogDescriptor, FCommonMessagingResultDelegate ResultCallback = FCommonMessagingResultDelegate());
private:
};

游戏实例的信息注册处理登录用户信息

1
2
3
4
5
6
7
8
9
10
11
12
13

void UCommonGameInstance::HandleSystemMessage(FGameplayTag MessageType, FText Title, FText Message)
{
	ULocalPlayer* FirstPlayer = GetFirstGamePlayer();
	// Forward severe ones to the error dialog for the first player
	// 将严重错误信息转发给第一个玩家的错误对话框中显示
	if (FirstPlayer && MessageType.MatchesTag(FCommonUserTags::SystemMessage_Error))
	{
		if (UCommonMessagingSubsystem* Messaging = FirstPlayer->GetSubsystem<UCommonMessagingSubsystem>())
		{
			Messaging->ShowError(UCommonGameDialogDescriptor::CreateConfirmationOk(Title, Message));//此处无需回调
		}
	}
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

void UCommonGameInstance::Init()
{
	Super::Init();

	// After subsystems are initialized, hook them together
	// 在子系统初始化完成后，将它们连接起来
	FGameplayTagContainer PlatformTraits = ICommonUIModule::GetSettings().GetPlatformTraits();

	UCommonUserSubsystem* UserSubsystem = GetSubsystem<UCommonUserSubsystem>();
	if (ensure(UserSubsystem))
	{
		UserSubsystem->SetTraitTags(PlatformTraits);
		UserSubsystem->OnHandleSystemMessage.AddDynamic(this, &UCommonGameInstance::HandleSystemMessage);
		UserSubsystem->OnUserPrivilegeChanged.AddDynamic(this, &UCommonGameInstance::HandlePrivilegeChanged);
		UserSubsystem->OnUserInitializeComplete.AddDynamic(this, &UCommonGameInstance::HandlerUserInitialized);
	}

	UCommonSessionSubsystem* SessionSubsystem = GetSubsystem<UCommonSessionSubsystem>();
	if (ensure(SessionSubsystem))
	{
		SessionSubsystem->OnUserRequestedSessionEvent.AddUObject(this, &UCommonGameInstance::OnUserRequestedSession);
		SessionSubsystem->OnDestroySessionRequestedEvent.AddUObject(this, &UCommonGameInstance::OnDestroySessionRequested);
	}
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

void UCommonUserSubsystem::HandleUserInitializeFailed(FCommonUserInitializeParams Params, FText Error)
{
	UCommonUserInfo* LocalUserInfo = ModifyInfo(GetUserInfoForLocalPlayerIndex(Params.LocalPlayerIndex));

	if (!LocalUserInfo)
	{
		// The user info was reset since this was scheduled
		return;
	}

	UE_LOG(LogCommonUser, Warning, TEXT("TryToInitializeUser %d failed with error %s"), LocalUserInfo->LocalPlayerIndex, *Error.ToString());

	// If state is wrong, abort as we might have gotten canceled
	if (!ensure(LocalUserInfo->IsDoingLogin()))
	{
		return;
	}

	// If initial login failed or we ended up totally logged out, set to complete failure
	ELoginStatusType NewStatus = GetLocalUserLoginStatus(Params.PlatformUser, Params.OnlineContext);
	if (NewStatus == ELoginStatusType::NotLoggedIn || LocalUserInfo->InitializationState == ECommonUserInitializationState::DoingInitialLogin)
	{
		LocalUserInfo->InitializationState = ECommonUserInitializationState::FailedtoLogin;
	}
	else
	{
		LocalUserInfo->InitializationState = ECommonUserInitializationState::LoggedInLocalOnly;
	}

	FText TitleText = NSLOCTEXT("CommonUser", "LoginFailedTitle", "Login Failure");

	if (!Params.bSuppressLoginErrors)
	{
		SendSystemMessage(FCommonUserTags::SystemMessage_Error_InitializeLocalPlayerFailed, TitleText, Error);
	}

	// Call callbacks
	Params.OnUserInitializeComplete.ExecuteIfBound(LocalUserInfo, false, Error, Params.RequestedPrivilege, Params.OnlineContext);
	OnUserInitializeComplete.Broadcast(LocalUserInfo, false, Error, Params.RequestedPrivilege, Params.OnlineContext);
}

UCommonGameDialogDescriptor（对话框描述器）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

UCLASS(MinimalAPI)
class UCommonGameDialogDescriptor : public UObject
{
	GENERATED_BODY()

public:
	static UE_API UCommonGameDialogDescriptor* CreateConfirmationOk(const FText& Header, const FText& Body);
	static UE_API UCommonGameDialogDescriptor* CreateConfirmationOkCancel(const FText& Header, const FText& Body);
	static UE_API UCommonGameDialogDescriptor* CreateConfirmationYesNo(const FText& Header, const FText& Body);
	static UE_API UCommonGameDialogDescriptor* CreateConfirmationYesNoCancel(const FText& Header, const FText& Body);

public:
	/** The header of the message to display */
	/** 显示的消息的标题 */
	UPROPERTY(EditAnywhere, BlueprintReadWrite)
	FText Header;

	/** The body of the message to display */
	/** 将要显示的消息主体 */
	UPROPERTY(EditAnywhere, BlueprintReadWrite)
	FText Body;

	/** The confirm button's input action to use. */
	/** 确认按钮的输入操作方式。*/
	UPROPERTY(BlueprintReadWrite)
	TArray<FConfirmationDialogAction> ButtonActions;
};

以最复杂的实现为例,存在确认,拒绝,取消这三个操作

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

UCommonGameDialogDescriptor* UCommonGameDialogDescriptor::CreateConfirmationYesNoCancel(const FText& Header, const FText& Body)
{
	UCommonGameDialogDescriptor* Descriptor = NewObject<UCommonGameDialogDescriptor>();
	Descriptor->Header = Header;
	Descriptor->Body = Body;

	FConfirmationDialogAction ConfirmAction;
	ConfirmAction.Result = ECommonMessagingResult::Confirmed;
	ConfirmAction.OptionalDisplayText = LOCTEXT("Yes", "Yes");

	FConfirmationDialogAction DeclineAction;
	DeclineAction.Result = ECommonMessagingResult::Declined;
	DeclineAction.OptionalDisplayText = LOCTEXT("No", "No");

	FConfirmationDialogAction CancelAction;
	CancelAction.Result = ECommonMessagingResult::Cancelled;
	CancelAction.OptionalDisplayText = LOCTEXT("Cancel", "Cancel");

	Descriptor->ButtonActions.Add(ConfirmAction);
	Descriptor->ButtonActions.Add(DeclineAction);
	Descriptor->ButtonActions.Add(CancelAction);

	return Descriptor;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

USTRUCT(BlueprintType)
struct FConfirmationDialogAction
{
	GENERATED_BODY()
public:
	/** Required: The dialog option to provide. */
	/** 必填项：需提供的对话选项。*/
	UPROPERTY(EditAnywhere, BlueprintReadWrite)
	ECommonMessagingResult Result = ECommonMessagingResult::Unknown;

	/** Optional: Display Text to use instead of the action name associated with the result. */
	/** （可选）：显示用于替代与结果相关联的操作名称的文本内容。*/
	UPROPERTY(EditAnywhere, BlueprintReadWrite)
	FText OptionalDisplayText;

	bool operator==(const FConfirmationDialogAction& Other) const
	{
		return Result == Other.Result &&
			OptionalDisplayText.EqualTo(Other.OptionalDisplayText);
	}
};

实际运用

蓝图函数节点

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

// 显示"Yes/No"确认对话框的异步操作
UAsyncAction_ShowConfirmation* UAsyncAction_ShowConfirmation::ShowConfirmationYesNo(UObject* InWorldContextObject, FText Title, FText Message)
{
	UAsyncAction_ShowConfirmation* Action = NewObject<UAsyncAction_ShowConfirmation>();
	Action->WorldContextObject = InWorldContextObject;
	Action->Descriptor = UCommonGameDialogDescriptor::CreateConfirmationYesNo(Title, Message);
	Action->RegisterWithGameInstance(InWorldContextObject);

	return Action;
}

// 显示"Ok/Cancel"确认对话框的异步操作
UAsyncAction_ShowConfirmation* UAsyncAction_ShowConfirmation::ShowConfirmationOkCancel(UObject* InWorldContextObject, FText Title, FText Message)
{
	UAsyncAction_ShowConfirmation* Action = NewObject<UAsyncAction_ShowConfirmation>();
	Action->WorldContextObject = InWorldContextObject;
	Action->Descriptor = UCommonGameDialogDescriptor::CreateConfirmationOkCancel(Title, Message);
	Action->RegisterWithGameInstance(InWorldContextObject);

	return Action;
}

// 显示自定义确认对话框的异步操作
UAsyncAction_ShowConfirmation* UAsyncAction_ShowConfirmation::ShowConfirmationCustom(UObject* InWorldContextObject, UCommonGameDialogDescriptor* Descriptor)
{
	UAsyncAction_ShowConfirmation* Action = NewObject<UAsyncAction_ShowConfirmation>();
	Action->WorldContextObject = InWorldContextObject;
	Action->Descriptor = Descriptor;
	Action->RegisterWithGameInstance(InWorldContextObject);

	return Action;
}

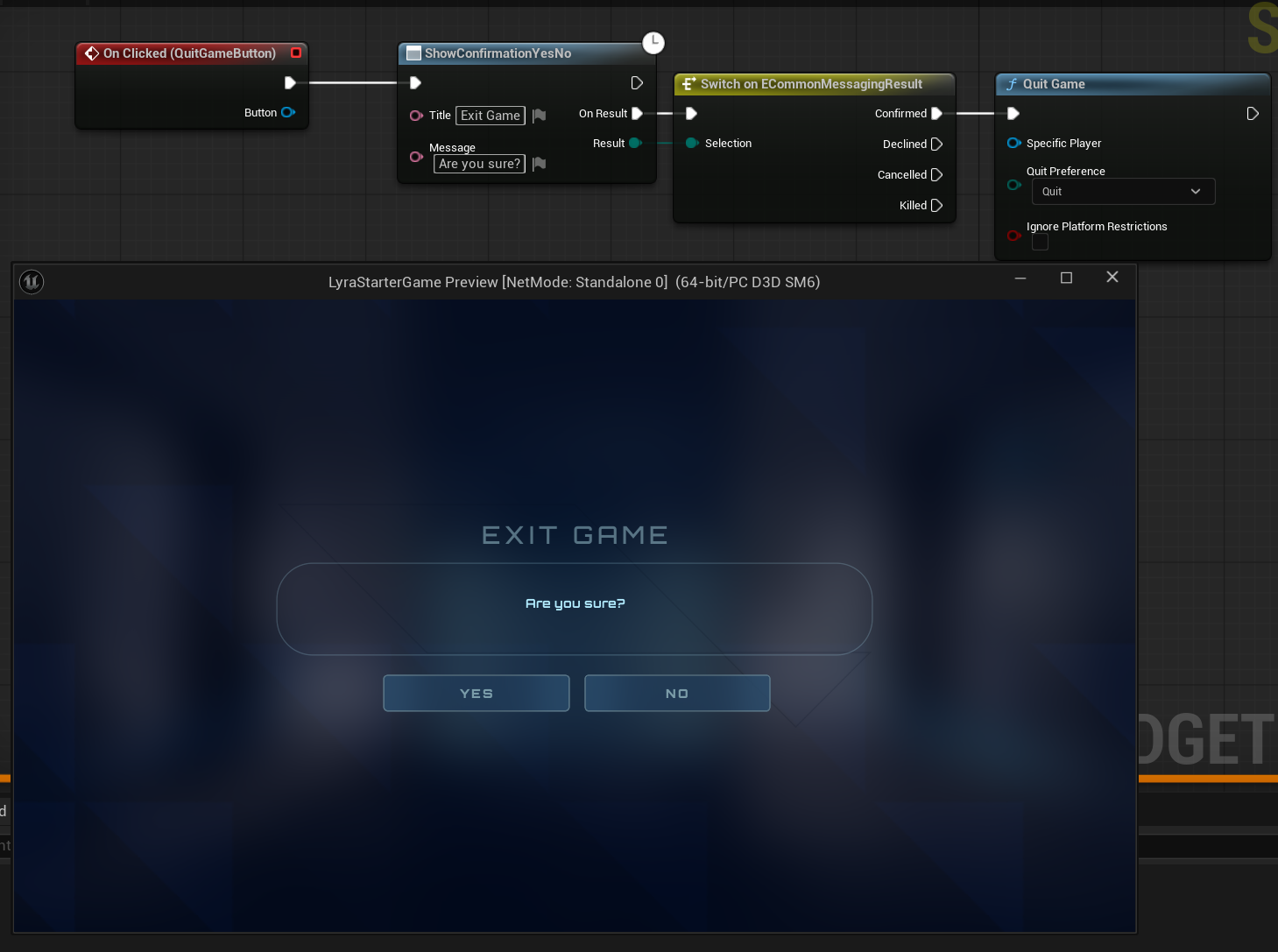

对话框

转发对话框描述器信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

UCLASS()
class ULyraUIMessaging : public UCommonMessagingSubsystem
{
	GENERATED_BODY()
public:
	ULyraUIMessaging() { }

	virtual void Initialize(FSubsystemCollectionBase& Collection) override;

	virtual void ShowConfirmation(UCommonGameDialogDescriptor* DialogDescriptor, FCommonMessagingResultDelegate ResultCallback = FCommonMessagingResultDelegate()) override;
	virtual void ShowError(UCommonGameDialogDescriptor* DialogDescriptor, FCommonMessagingResultDelegate ResultCallback = FCommonMessagingResultDelegate()) override;
private:
	UPROPERTY()
	TSubclassOf<UCommonGameDialog> ConfirmationDialogClassPtr;

	UPROPERTY()
	TSubclassOf<UCommonGameDialog> ErrorDialogClassPtr;

	// 确认确定框的控件类
	UPROPERTY(config)
	TSoftClassPtr<UCommonGameDialog> ConfirmationDialogClass;

	// 错误对话框的控件类
	UPROPERTY(config)
	TSoftClassPtr<UCommonGameDialog> ErrorDialogClass;
};

控件类需配置才能正常显示 DefaultGame.ini

1
2
3
4
5

[/Script/LyraGame.LyraUIMessaging]
; 确认对话框
ConfirmationDialogClass=/Game/UI/Foundation/Dialogs/W_ConfirmationDefault.W_ConfirmationDefault_C
; 错误对话框
ErrorDialogClass=/Game/UI/Foundation/Dialogs/W_ConfirmationError.W_ConfirmationError_C

1
2
3
4
5
6
7
8
9
10
11
12

void ULyraUIMessaging::ShowConfirmation(UCommonGameDialogDescriptor* DialogDescriptor, FCommonMessagingResultDelegate ResultCallback)
{
	if (UCommonLocalPlayer* LocalPlayer = GetLocalPlayer<UCommonLocalPlayer>())
	{
		if (UPrimaryGameLayout* RootLayout = LocalPlayer->GetRootUILayout())
		{
			RootLayout->PushWidgetToLayerStack<UCommonGameDialog>(TAG_UI_LAYER_MODAL, ConfirmationDialogClassPtr, [DialogDescriptor, ResultCallback](UCommonGameDialog& Dialog) {
				Dialog.SetupDialog(DialogDescriptor, ResultCallback);
			});
		}
	}
}

生成对话框

对话框基类

1
2
3
4
5
6
7
8
9
10
11
12

UCLASS(MinimalAPI, Abstract)
class UCommonGameDialog : public UCommonActivatableWidget
{
	GENERATED_BODY()
public:
	// 无
	UE_API UCommonGameDialog();
	// 接口
	UE_API virtual void SetupDialog(UCommonGameDialogDescriptor* Descriptor, FCommonMessagingResultDelegate ResultCallback);
	// 接口
	UE_API virtual void KillDialog();
};

继承于对话框基类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52

/**
 *	用于接收确认信息的对话框 需要蓝图进行绑定控件
 */
UCLASS(Abstract, BlueprintType, Blueprintable)
class ULyraConfirmationScreen : public UCommonGameDialog
{
	GENERATED_BODY()
public:
	// 根据描述器建立对话框
	virtual void SetupDialog(UCommonGameDialogDescriptor* Descriptor, FCommonMessagingResultDelegate ResultCallback) override;
	// 无
	virtual void KillDialog() override;

protected:
	// 绑定退出按钮
	virtual void NativeOnInitialized() override;
	// 关闭窗口 并推送对话框选择的结果
	virtual void CloseConfirmationWindow(ECommonMessagingResult Result);

#if WITH_EDITOR
	// 编辑器接口 确保取消行为有效
	virtual void ValidateCompiledDefaults(IWidgetCompilerLog& CompileLog) const override;
#endif

private:
	// 背景的退出按钮
	UFUNCTION()
	FEventReply HandleTapToCloseZoneMouseButtonDown(FGeometry MyGeometry, const FPointerEvent& MouseEvent);

	// 传递给蓝图的后续执行引脚对应的对话框结果
	FCommonMessagingResultDelegate OnResultCallback;
private:
	// 标题
	UPROPERTY(Meta = (BindWidget))
	TObjectPtr<UCommonTextBlock> Text_Title;

	// 描述
	UPROPERTY(Meta = (BindWidget))
	TObjectPtr<UCommonRichTextBlock> RichText_Description;

	// 按钮的容器 这里需要指定实例化的子类
	UPROPERTY(Meta = (BindWidget))
	TObjectPtr<UDynamicEntryBox> EntryBox_Buttons;

	// 关闭案例
	UPROPERTY(Meta = (BindWidget))
	TObjectPtr<UCommonBorder> Border_TapToCloseZone;

	// 取消的行为
	UPROPERTY(EditDefaultsOnly, meta = (RowType = "/Script/CommonUI.CommonInputActionDataBase"))
	FDataTableRowHandle CancelAction;
};

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56

// Setup the confirmation dialog with descriptor and callback
// 使用描述符和回调设置确认对话框
void ULyraConfirmationScreen::SetupDialog(UCommonGameDialogDescriptor* Descriptor, FCommonMessagingResultDelegate ResultCallback)
{
	Super::SetupDialog(Descriptor, ResultCallback);

	// Set dialog title and body text from descriptor
	// 从描述符设置对话框标题和正文文本
	Text_Title->SetText(Descriptor->Header);
	RichText_Description->SetText(Descriptor->Body);

	// Clear existing buttons and their click handlers
	// 清除现有按钮及其点击处理程序
	EntryBox_Buttons->Reset<ULyraButtonBase>([](ULyraButtonBase& Button)
		{
			Button.OnClicked().Clear();
		});

	// Create buttons for each action in the descriptor
	// 为描述符中的每个操作创建按钮
	for (const FConfirmationDialogAction& Action : Descriptor->ButtonActions)
	{
		FDataTableRowHandle ActionRow;

		// Determine input action based on result type
		// 根据结果类型确定输入操作
		switch (Action.Result)
		{
		case ECommonMessagingResult::Confirmed:
			ActionRow = ICommonInputModule::GetSettings().GetDefaultClickAction();
			break;
		case ECommonMessagingResult::Declined:
			ActionRow = ICommonInputModule::GetSettings().GetDefaultBackAction();
			break;
		case ECommonMessagingResult::Cancelled:
			ActionRow = CancelAction;
			break;
		default:
			ensure(false);
			continue;
		}

		// Create button and configure its properties
		// 创建按钮并配置其属性
		ULyraButtonBase* Button = EntryBox_Buttons->CreateEntry<ULyraButtonBase>();
		Button->SetTriggeringInputAction(ActionRow);
		// Bind click event to close confirmation with specific result
		// 绑定点击事件以特定结果关闭确认
		Button->OnClicked().AddUObject(this, &ThisClass::CloseConfirmationWindow, Action.Result);
		Button->SetButtonText(Action.OptionalDisplayText);
	}

	// Store the result callback for later execution
	// 存储结果回调以供稍后执行
	OnResultCallback = ResultCallback;
}
Lyra, UI
ue Lyra ui
本文由作者按照 CC BY 4.0 进行授权
